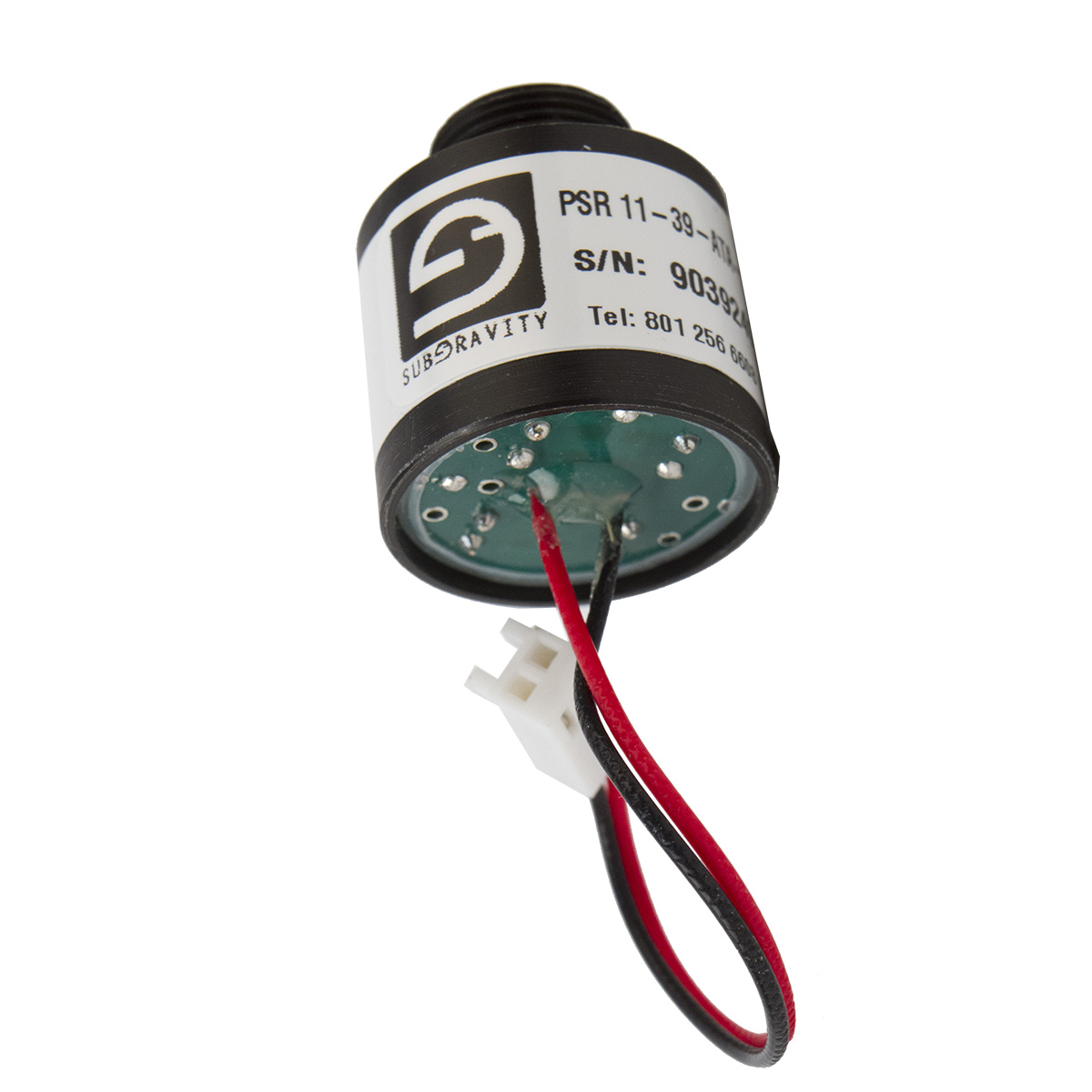

Replacement Oxygen Sensor for Analox ATA Tri-Mix analyzer

$115.00

Available on backorder

SKU: SG-PSR-11-39-ATA Categories: ,

Description

Replacement oxygen sensor for Analox ATA Tri-Mix analyzer. Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30″ of water column pressure test and stability at 100% oxygen.

  • Analox 9100-9212-94 equivalent

Product Attributes

Shipping Weight .25 Lbs.
Shipping Dimensions 4 x 4 x 1 in

SG-PSR-11-39-ATA Specs

Measuring Range0-100%
Accuracy 1 +/-2% of Full Scale
Signal Output 28 - 12 mV
Linearity+/-2% of Full Scale
Response T906 sec
Temperature CoefficientCompensated
Operating Temp0 to 45°C
Recommended Storage 30 to 25°C
Shelf Life 46 months
Humidity Non-condensing0-99% RH
Expected Life42 months
Warranty 512 months
Electrical Conn2 Pin female Molex
* Conditions - Specification validated during design and in pursuit of improvement are subject to change without notice
1- At constant temperature and pressure.
2- In air (20.9% oxygen) at 25°C and 1 atm.
3- Sensor may be stored up to 55°C on an intermittent basis, for example, during transportation.
4- In original Package at 25°C and 1 atm.
5- Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by SubGravity is limited to replacing the sensor. SubGravity will not be liable for buyer’s negligence, misapplication, abuse or accident.
