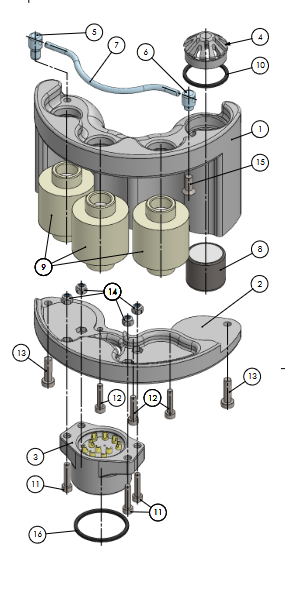

X-CCR Sensor Cartridge Parts
| Diagram Number | Part Number | Image | Product Name | Price | Quantity |
|---|---|---|---|---|---|
| 1 | 108 01 41 |
 |
Sensor Holder X | ||
| 108 01 44 |
|
Connector SX assy | |||
| 108 02 54 |
|
O-ring 20x2 | |||
| 2 | 108 01 42 |
|
Sensor Foot X | ||
| 4 | 108 01 45 |
|
CO2 Sensor Cover | ||
| 5 | 108 01 46 |
|
Wire Eye A | ||
| 6 | 108 01 47 |
|
Wire Eye B | ||
| 7 | 108 01 48 |
|
Pull Wire | ||
| 8 | 108 02 05 |
|
CO2 sensor | ||
| 9 | 108 02 38 |
|
O2 Sensor SMB coax | ||
| 11 | 108 02 72 |
|
Screw M3x14 A4 | ||
| 12 | 108 02 73 |
|
Screw M3x16 A4 | ||
| 13 | 108 02 74 |
|
Screw M4x14 A | ||
| 14 | 108 02 78 |
|
Nut M3 SL A4 | ||
| 15 | 108 02 79 |
|
Screw M4x10 A4 | ||
| 16 | NBR 70 |
|
O-ring 25x1,78 |
