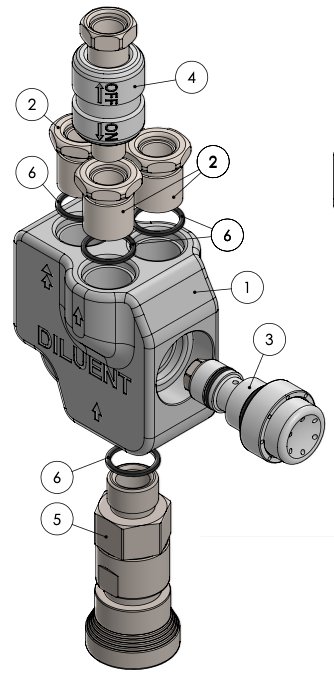

FX-CCR MAV DIL Parts
| Diagram Number | Part Number | Image | Product Name | Price | Quantity |
|---|---|---|---|---|---|
| 1 | 105 10 02 |
 |
MAV Body DIL 3H | ||
| 2 | 108 11 10 |
|
Insert 3-8 | ||
| 4 | 110 10 00 |
|
Shut-Off Valve 3-8 assy | ||
| 5 | 110 09 14 |
|
Connector QC6 9-16 Female | ||
| 6 | FX-O-019 |
|
O-ring | ||
| 10 | 110 09 10 |
|
MAV Dil 3H assy | ||
| 12 | 108 17 03 |
|
Miflex Reg. Hose 25cm | ||
| 13 | 110 17 05 |
|
Miflex Reg. Hose 62cm |
