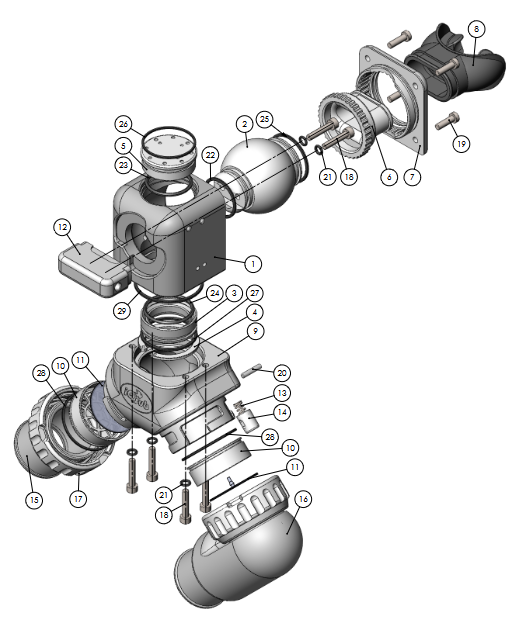

SM DSV 2 Parts
| Diagram Number | Part Number | Image | Product Name | Price | Quantity |
|---|---|---|---|---|---|
| 1 |
 |
DSV SM 2.1 Body | |||
| 2 |
|
SM DSV Ball Valve | |||
| 3 |
|
DSV Sealing Ring | |||
| 4 |
|
DSV Lock Ring | |||
| 5 |
|
SM DSV Top Ring 2 | |||
| 6 |
|
Mouthpiece Part | |||
| 7 |
|
DSV SM 2 Lid | |||
| 8 |
|
Mouthpiece | |||
| 9 |
|
Hose Y2 | |||
| 10 |
|
One-Way Valve DR40-13,7 | |||
| 11 |
|
Draeger Membrane | |||
| 12 |
|
Valve Knob 2009 | |||
| 13 |
|
Lock Button Spring_ | |||
| 14 |
|
Lock Button | |||
| 15 |
|
DSV Coupler 40 | |||
| 16 |
|
L-90 Coupler assy | |||
| 17 |
|
DSV Nut B483 | |||
| 18 |
|
M4x20 | |||
| 19 |
|
Screw M4x14 A4 Low head | |||
| 20 |
|
Set Screw M3x16 | |||
| 21 |
|
O-ring 4x1,5 | |||
| 22 |
|
O-ring 24x2 | |||
| 23 |
|
O-ring 27x2 | |||
| 24 |
|
O-ring 29x2 | |||
| 25 |
|
O-ring 30x2 | |||
| 26 |
|
O-ring 32x1,5 | |||
| 27 |
|
O-ring 32x2 | |||
| 28 |
|
O-ring 36x1,5 | |||
| 29 |
|
O-ring 40x2 |
